Midnite MNPV3 3 Way PV Solar Combiner
Original price was: KSh 24,000.00.KSh 17,700.00Current price is: KSh 17,700.00.
Midnite MNPV3 3 Way PV Solar Combiner

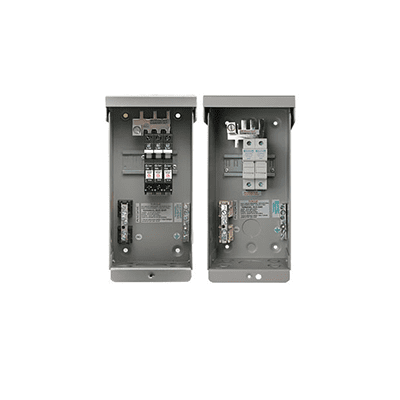

Midnite MNPV3 3 Way PV Solar Combiner For 150 VDC charge controllers and 600 VDC grid tie inverters, available circuit breakers 13mm from 1 Amp to 60 Amps. The most popular PV combiner in North America. Gray aluminum type 3R rainproof enclosure with an insulating dead front, will accept three 150VDC breakers or 2 600VDC fuse holders. 11 x 5 x 4″ ETL listed for US and Canada. Up to two 300VDC circuit breakers, 7 Amp to 50 Amp can be installed as a disconnect (remove combiner busbar). Knockouts that accept waterproof strain reliefs, conduits, or panel mount MC-type connectors. Knockouts for lightning arrestors. PV systems as small as a two-string off-grid cabin up to 16 strings for a 100KW commercial grid tie inverter. Made in the USA
Product Specs
| Model | MNPV3 (LV) |
| Max VDC | 150 |
| Max No. of strings | 3 |
| Max OCPD Rating Amps | 63 |
| OCPD | CB 150V |
| Wire Range AWG | 14-1/0 |
| Max No. of Output Strings | 1 |
| Max Output Amps | 60 |
| Approved Mounting Angle | 90 to 14° |
| Enclosure Type / Material | 3R/Alum |
| Rating | UL1741 |
